Wireline Roller Stem Wireline Tool String

Name: Wireline Roller Stem Wireline Tool String
Brand: Ruixin
Price: 1 USD

Brand Name : Ruixin

Model Number : 1.5inch 1.875inch 2inch 2.125inch

Certification : API Q1

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 1 set 3 weeks

Delivery Time : 3-4 weeks

Packaging Details : Wooden Box

Material : Alloy Steel&Nickel Alloy

Size : 1.5inch 1.75inch 1.875inch 2inch 2.5inch

Fish Neck : 1.187inch 1.5inch 1.75inch 1.875inch 2inch 2.5inch

Length : 2ft 3ft 5ft

Connection : SR QLS HDQRJ, BLQJ

Service : Standard&H2S

Contact Now

Wireline Roller Stem Wireline Tool String

I.Introduction

A wireline roller stem is designed to replace conventional stem for operation in deviated well bores. The rollers on the stem run along the underside wall of the tubing. The use of rollers greatly reduces the friction that conventional stem would encounter.

II.General Technical Parameters

Size (Body)	Fishing neck	Connection	Length	PN.
1.25＂	1.187＂	15/16UN	2ft	W03-05.05.00
1.25＂	1.187＂	15/16UN	3ft	W03-05.06.00
1.25＂	1.187＂	15/16UN	5ft	W03-05.07.00
1.5＂	1.375＂	15/16UN	2ft	W03-05.08.00
1.5＂	1.375＂	15/16UN	3ft	W03-05.04.00
1.5＂	1.375＂	15/16UN	5ft	W03-05.09.00
1.75＂	1.375＂	15/16UN	2ft	W03-05.10.00
1.75＂	1.375＂	15/16UN	3ft	W03-05.11.00
1.75＂	1.375＂	15/16UN	5ft	W03-05.12.00
1.875＂	1.75＂	1-1/16UN	2ft	W03-05.13.00
1.875＂	1.75＂	1-1/16UN	3ft	W03-05.03.00
1.875＂	1.75＂	1-1/16UN	5ft	W03-05.14.00
2.125＂	1.75＂	1-1/16UN	2ft	W03-05.15.00
2.125＂	1.75＂	1-1/16UN	3ft	W03-05.16.00
2.125＂	1.75＂	1-1/16UN	5ft	W03-05.02.00
2.5＂	2.313＂	1-9/16UN	2ft	W03-05.17.00
2.5＂	2.313＂	1-9/16UN	3ft	W03-05.18.00
2.5＂	2.313＂	1-9/16UN	5ft	W03-05.19.00

Note. More customized parts are available upon request.

III.Structure characteristics and application

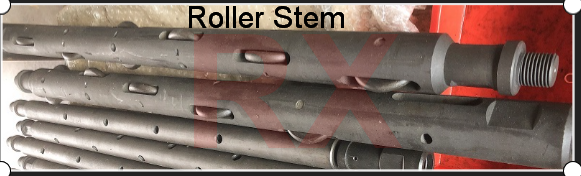

The wireline roller stem is modified based on conventional stem, with milled slots to accommodate simple roller wheels. The wheels run on high tensile steel axle bolts, which are locked in position by roller pins.

Wireline Roller Stem Wireline Tool String

Wireline Roller Stem Wireline Tool String Images
