1.875 Inch Wireline Spring Centralizer Wireline Tool String

Name: 1875 Inch Wireline Spring Centralizer Wireline Tool String
Brand: Ruixin
Price: 1 USD

Brand Name : Ruixin

Model Number : 1.5inch 1.875inch 2.125inch 2.5inch

Certification : API Q1

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 1 set 3 weeks

Delivery Time : 2-4 weeks

Packaging Details : Wooden Box

Name : 1.875 Inch Wireline Spring Centralizer Wireline Tool String

Material : Alloy Steel&Nickel Alloy

Size : 1.5inch 1.875inch 2.125inch 2.5inch

Fish Neck : 1.187inch 1.375inch 1.75inch 2.313inch

Connection : SR,QLS,BLQJ,HDQRJ

Strutting OD : 2~4inch,2~4-1/2inch,2-1/4~4-3/4inch,2-3/4~5inch

Advantage : To assist in centralizing the tool string inside large bore tubing

Contact Now

Wireline Spring Centralizer Wireline Tool String

Ⅰ.Introduction

A wireline spring centralizer is designed to assist in centralizing the tool string inside large bore tubing. Normally used in the tool string when running pressure and temperature gauges, it helps centralize and reduce shock being transmitted to the gauges. The design of this kind of centralizer enables one tool to centralize a large range of tubing ID.

The bow spring centralizer is designed to centralize the tool string in large diameter tubing andcasings.

The bow spring centralizer is able to pass through the restricted bores of the tail pipeand expand into the casing liner below thus enabling the tools to be held away from the casing.

Ⅱ.General Technical Parameters

Size	Fishing neck	Connection	Strutting OD	PN.
1.5＂	1.375＂	15/16-10UN	2＂-4＂	W09-01.**.00
1.875＂	1.75＂	1-1/16-10UN	2＂-4-1/2＂	W09-01.**.00
2.125＂	1.75＂	1-1/16-10UN	2-1/4＂-4-3/4＂	W09-01.**.00
2.5＂	2.313＂	1-9/16-10UN	2-3/4＂-5＂	W09-01.**.00

Note: More customized parts are available upon request.

Ⅲ.Structural features:

The wireline spring centralizer is composed of upper contact, mandrel, centering sleeve, spring piece, lower contact, etc. Install the centering sleeve on the mandrel, connect the top end and bottom end of mandrel with upper contact and lower contact respectively, and fix the spring piece on the centering sleeve. The spring is released in free state. Adjust the releasing length of spring piece through adjusting the position of centering sleeve on the mandrel.

Welcome to contact us at any time.

1.875 Inch Wireline Spring Centralizer Wireline Tool String

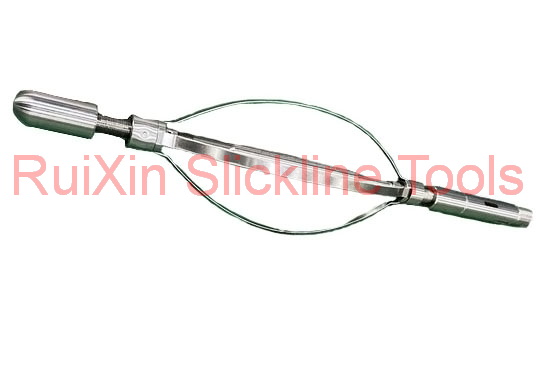

1.875 Inch Wireline Spring Centralizer Wireline Tool String Images
